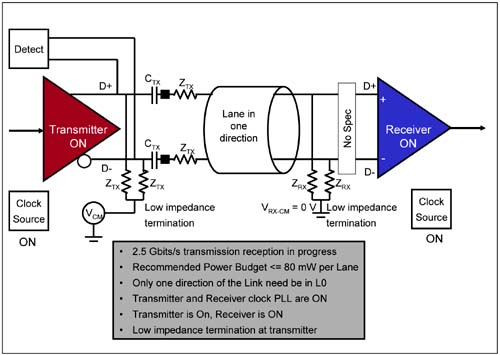

Electrical Physical Layer State in Power StatesFigure 12-17 on page 482 through Figure 12-21 on page 486 illustrate the electrical state of the Physical Layer while the link is in various power management states. Figure 12-17. L0 Full-On Link State

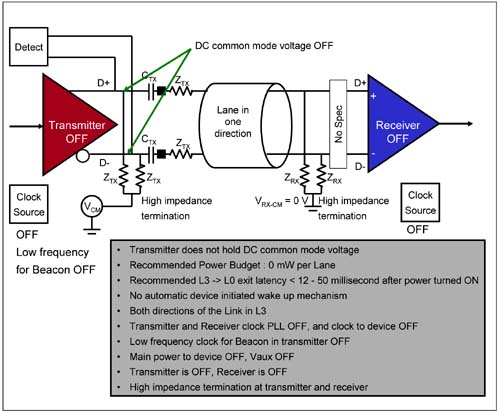

Figure 12-21. L3 Link Off State

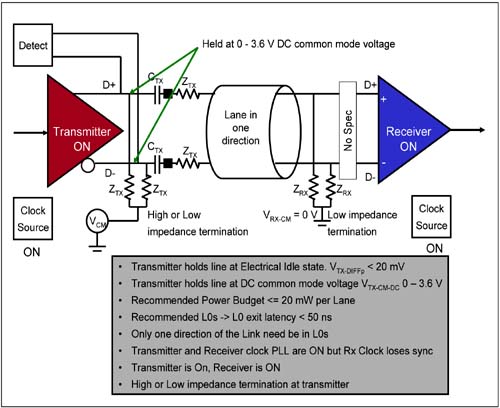

Figure 12-18. L0s Low Power Link State

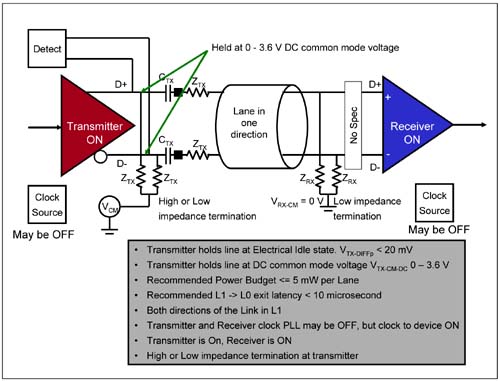

Figure 12-19. L1 Low Power Link State

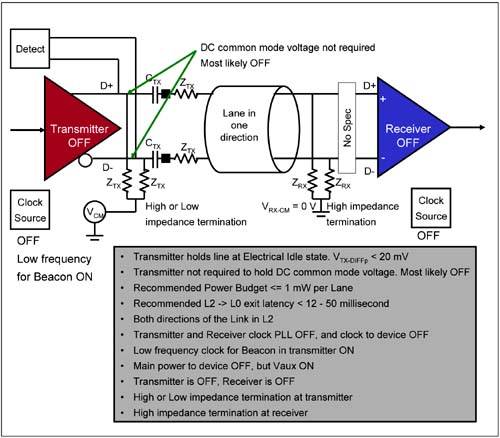

Figure 12-20. L2 Low Power Link State
 |
